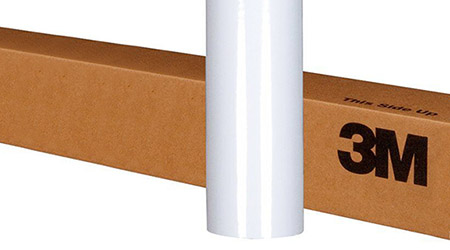

3M 680 Scotchlite Reflective Graphic Films are permanent, enclosed lens, retroreflective, engineer grade films that feature flexibility and versatility with slideable, pressure-activated adhesive. Use these long-term durable films for a commercial vehicle, sign, railcar and bus graphics and striping on vertical, flat, curved or corrugated surfaces, with or without rivets.
| Surface | Curved, Flat, Rivets |
|---|---|
| Laminate | Cold |
| Solvent | N/A |
| Eco Solvent | N/A |
| Computer Cut | Yes |
| Screen | Yes |
| Processing | Computer Cut, Screen Print |
| Minimum Application Degree | 50 w/o rivets / 55 w/ rivets |
| Thermal Transfer | N/A |
| Shelf Life | 3 Years |
| Wet Apply | No |
| Interior/ Exterior | Interior and Exterior |
| Sheetable | Yes |
| Flat Bed | Yes |
| Thermal Die | Yes |
| UV Inkjet | N/A |
| Steel Rule | Yes |
| Brand | 3M™ |
| Series | 6800 |
| Application | Banner |
| Durability | 5 Years or More |
| Film Technology | Retroreflective |
| Film Thickness | 7 |
| Finish | Gloss |
| Blockout | Yes |
| Outdoor Durability | 9 Year |
| Adhesive / Color | Pressure Activated, Slideable/ Clear |
| Liner | Polyethylene Coated LF |
| Conformability | Flat, with and without rivets,moderate curves, corrugations |
| Product Type | Reflective |
| Subcategory | Reflective |
Applying Reflective
090
White
071
Gold
072
Red
075
Blue
077
Green
