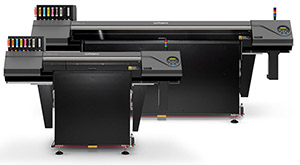

6 models to fit your business needs!

Choose from 4 flatbed models and 2 belt driven models.
Roland UV5 500 ml ink cartridges in CMYK, Or, Rd, Wh, Gloss and Primer
Print on objects up to 7.87" high
Optional Rotary Rack allows printing on cylindrical objects
Belt driven models can print rigid substrates as well as roll feed media
Instant dry UV ink offers extremely vibrant colors with the additional of Red and Orange ink

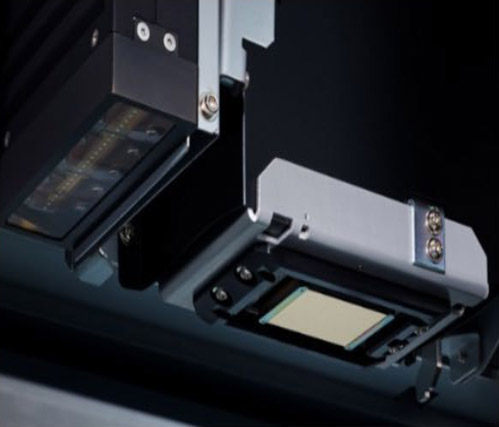

Precision Printhead and LED-UV Lamps

Precision ink delivery as small a 5pL produces the sharpest type and crisp graphics. White and Gloss inks can be layered to make 3d and textured effects. Orange and Red inks expand the color gamut to give you the ability to hit colors not achievable with previous UV printers. New UV lamps cure ink instantly for immediate applicaitions.

Automated Pinch Rollers

Redesigned inner pinch rollers raise during cutting jobs while outer rollers remain engaged to ensure accurate print and cut operation.

New Media Holder

A one-touch lever locks the media in-place in one easy motion— other easy loading features include an integrated fan to keep the media steady during set-up.

Adjustable Take-Up Reel

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

Automated Printhead Alignment

A new optical eye automates the printhead alignment process to keep your prints razor sharp.

Smart Media Clamps

For a more efficient print operation, smart media clamps with integrated grooves don't interfere with sheet-cutting or need to be removed at any time.

Orange and Green options for added vibrancy and color accuracy

Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.

Expand your Color Gamut with "True Rich Color 2"

Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.

		VG3-640	VG3-540
Printing Method		Piezo ink-jet method
Media	Width	13.2 to 64 in. (335 to 1,625 mm)	11.7 to 54 in. (297 to 1,371 mm)
	Thickness	Max. 39.3 ml (1.0 mm) with liner, for printing Max. 15.7 ml (0.4 mm) with liner and 8.6 ml (0.22 mm) without liner, for cutting
	Roll outer diameter	Max. 9.8 in. (250 mm)
	Roll weight	Max. 99 lb. (45 kg)	Max. 77 lb. (35 kg)
	Core diameter	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1)		Max. 62.9 in. (1,600 mm)	Max. 52.9 in. (1,346 mm)
Ink	Type	TrueVIS INK 500 ml pouch (only white 250 ml)
Ink	Colors	Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange) Eight colors (cyan, magenta, yellow, black, light black, orange, green and white) Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green) Seven colors (cyan, magenta, yellow, black, light black, orange, and green) Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Cutting speed		0.39 to 11.8 in/s (10 to 300 mm/s)
Blade force (*2)		30 to 500 gf

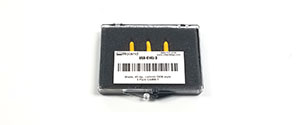

Blade	Type	Roland CAMM-1 series blade
Blade	Offset	0.0 to 59 ml (0.000 to 1.500 mm)
Software resolution (when cutting)		0.98 ml/step (0.025 mm/step)
Media heating system (*3)		Print heater set temperature: 86 to 113 (°F 30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Rated input		100-120/220-240 Va.c. 50/60 Hz 8.0/4.1 A
Power consumption	During operation	Approx. 1,090 W
Power consumption	Sleep mode	Approx. 50 W
Acoustic noise level	During operation	63 dB (A) or less
Acoustic noise level	During standby	53 dB (A) or less
Dimensions (Width x Depth x Height)		113.7 in. x 29.5 in. x 52.0 in. (2,886 mm x 748 mm x 1,320 mm)	103.7 in. x 29.5 in. x 52.0 in. (2,632 mm x 748 mm x 1,320 mm)
Weight		448 lb. (203 kg)	417 lb. (189 kg)
Environment	During operation (*4)	Temperature: 68 to 89.6 °F (20 to 32 °C), humidity: 35 to 80 % RH (no condensation)
Environment	Not operating	Temperature: 41 to 104 °F (5 to 40 °C), Humidity: 20 to 80 % RH (no condensation)
Included items		Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User's Manual, Software(VersaWorks, Roland DG Connect), etc.
