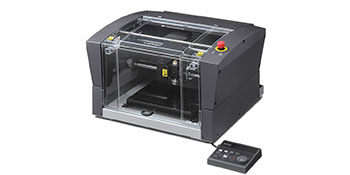

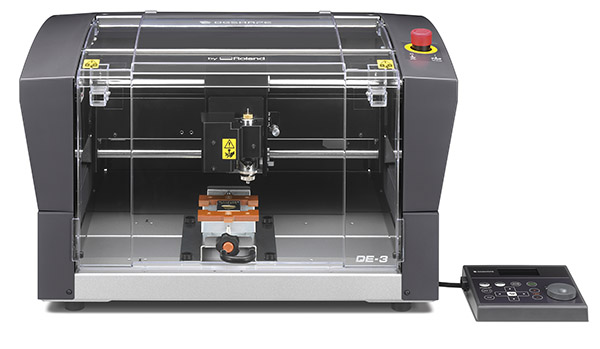

For over 30-years, Roland has lead innovation in rotary engraving technology and continues to break new ground with the DE-3 DGSHAPE desktop rotary engraver. Featuring laser-pointing technology, ethernet connectivity, automatic depth regulation and other intelligent enhancements, the DE-3 is one of the smartest, most intuitive rotary engravers on the market
DE-3 and EngraveLab
Engraving Intro

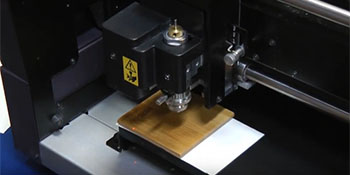

Easily-applied nose cones can be added to the spindle unit to avoid scratches to delicate materials and deliver consistently precise results. A laser pointer accurately defines the origin point and displays an engraving path preview on the media— set the engraving position at the touch-of-a-button for accurate engraving and personalization every time. Powered by a 20,000 rpm DC brushless motor, the DE-3 utilizes advanced surface detection and other automatic features to make set-up and engraving a quick and simple process.

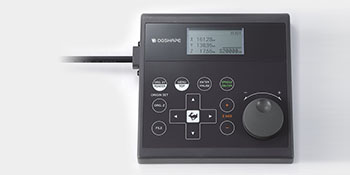

Without the need for computer setup, you can quickly select machine options such as spindle speed and one-touch machine cleaning. Engraving job data can be sent from your computer and stored in the controller after the PC is disconnected.
| Work table size | 305mm x 230mm 12.0079in x 9.05512in |
|
| Maximum Work Area (Work Envelope) | 12” (X) x 9.1” (Y) x 1.6” (Z) 305 mm (X) x 230 mm (Y) x 40mm (Z) |
|
| XYZ Axis Drive System | Stepper motor, 3-axis simultaneous control | |
| Operating Speed | XY axis: | 0.1 ～ 60 mm/sec. |
| Z axis: | 0.1 ～ 30mm/sec. | |
| Software Resolution | 0.004” (0.01 mm) /step | |
| Mechanical Resolution | XYZ-axis: | 0.00125 mm/step |
| Spindle Motor | Brushless DC Motor | |
| Spindle Speed | 5,000 ～ 20,000 rpm | |
| Tool Loading | Cutter Holder, Collet Type | |
| Maximum Material Thickness | 40 mm（38 mm when using the nose cone） | |
| Connection | USB | |
| Ethernet（10 BASE-T/100 BASE-TX） | ||
| Machine Language | RML-1 | |
| Power Supply | Voltage and Frequency | AC 100V – 240V ± 10%、50/60Hz（Overvoltage category: Category Ⅱ, IEC60664-1) |
| Rated Current | 1.0 A | |
| Power Consumption | 80 W | |
| Operating Noise | While Operating： | 60 dB（or less) |
| Standby： | 40 dB（or less) | |
| External Dimensions | 2'02" (W) x 1'9" (D) x 1'2" (H) (616 mm (W) × 587 mm (D) × 390mm (H)) |
|
| Machine Weight | 75 lbs (35 kg) | |
| Installation Environment | Indoor use, altitude: | 2000 m or less |
| Temperature | 5 to 40 °C | |
| Humidity | 35 to 80% (no dew condensation) | |
| Environment pollution degree: | 2 | |
| Bundled Accessories | "Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide" | |
| Part No. | Description | Price |
|---|---|---|
| ADA-BUNDLE-MAN | ADA Starter Kit for EGX-350 | $4,230.00 |
| AS-10 | Adhesive Sheet Hold-down System (pack of 10) | $39.99 |
| BT-125-010 | Burnish Tool, 1/8in shnkx4.5in lgthx.010in tip | $17.49 |
| BT-125-015 | Burnish Tool, 1/8in shnkx4.5in lgthx.015in tip | $17.49 |
| BT-125-030 | Burnish Tool, 1/8in shnkx4.5in lgthx.030in tip | $17.49 |
| BT-171-015 | Burnish Tool,11/64in shnkx6.5in lgthx.015in tip | $23.99 |
| BT-171-030 | Burnish Tool,11/64in shnkx6.5in lgthx.030in tip | $23.99 |
| C2-125-010K | Carb. Engr Cutter, .010in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-015K | Carb. Engr Cutter, .015in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-030K | Carb. Engr Cutter, .030in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-060K | Carb. Engr Cutter, .060in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-090K | Carb. Engr Cutter, .090in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-125K | Carb. Engr Cutter, .125in, 1/8in Shank, W/Knob | $19.49 |
| C2-125-DGK | Diamond Gravers, non-rotary, 1/8in shank, W/knob | $24.99 |
| C2-125-KNOB | Threaded Brass Knob for 1/8in shank engr tools | $4.29 |
| C2-171-010K | Carb. Tip Engr Cutter, .010in 11/64inShnk W/Knob | $25.99 |
| C2-171-015K | Carb. Tip Engr Cutter, .015in 11/64inShnk W/Knob | $25.99 |
| C2-171-030K | Carb. Tip Engr Cutter, .030in 11/64inShnk W/Knob | $25.99 |
| C2-171-060K | Carb. Tip Engr Cutter, .060in 11/64inShnk W/Knob | $25.99 |
| C2-171-090K | Carb. Tip Engr Cutter, .090in 11/64inShnk W/Knob | $25.99 |
| C2-171-125K | Carb. Tip Engr Cutter, .125in 11/64inShnk W/Knob | $25.99 |
| C2-171-171K | Carb. Tip Engr Cutter, .171in 11/64inShnk W/Knob | $25.99 |
| C2-171-DGK | Diamond Gravers,non-rotary,11/64in shank, W/knob | $27.99 |
| C2-171-KNOB | Threaded Brass Knob for 11/64in shank Engr tools | $4.29 |
| HS-171-005K | Hi-Spd Steel Cutter 11/64inshnk 6.5in .005in tip with knob | $25.99 |
| HS-171-010K | Hi-Spd Steel Cutter 11/64inshnk 6.5in .010in tip with knob | $25.99 |
| HS-171-015K | Hi-Spd Steel Cutter 11/64inshnk 6.5in .015in tip with knob | $25.99 |
| HS-171-030K | Hi-Spd Steel Cutter 11/64inshnk 6.5in .030in tip with knob | $25.99 |
| MV-2 | Multipurpose Vise for EGX-350/360/400/600/DE-3 | $719.99 |
| PAR-125-060K | 0.060in Parallel Cutter, 1/8in Cut Depth | $25.99 |
| PAR-171-060K | 0.060in Parallel Cutter,11/64in Shank,1/8in Depth | $30.99 |
| US-CHIPSYS-C | Chip Extraction Sys. UltraQuiet, 1/2hp w/Accumulator | $849.99 |
| US-ENGRVLAB-9 | EngraveLab Expert v9.0 for EGX | $999.00 |
| US-FLTRBAG-A3 | Filter bag (3-pk) for chip removal system | $49.99 |
| US-TL125-KIT | Engraving Tool Starter Kit, 1/8in tools with holder | $113.99 |
| US-TL171-KIT | Engraving Tool Starter Kit, 11/64in tools w/holder | $133.99 |
| ZTT-35 | T-Slot Table for EGX-350 | $229.99 |
| ZV-23A | Vacuum table, PNC-2300 | $199.99 |
| ZV-23C | Machine Vise, EGX-350 / EGX-300 | $349.99 |
