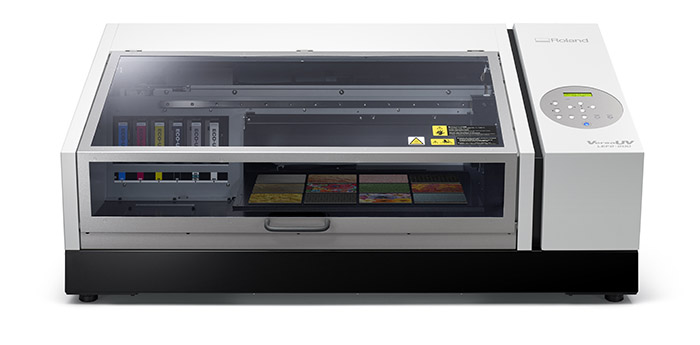

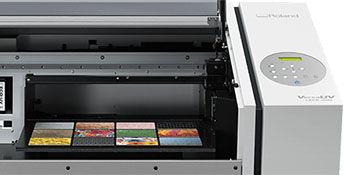

Your customers want something unique. Give them something extraordinary with the VersaUV LEF2-200: the latest generation of Roland’s award-winning benchtop UV printer. Simple to operate and packed with potential, the LEF2-200 enables direct printing onto a huge range of materials and objects up to 3.87" thick – producing stunning color, realistic textures and stylish
The LEF2-200 features energy-saving LED lamps that last up to ten times longer than conventional UV lamps. These can be instantly switched on and off for a true on-demand operation that doesn’t require a long warm-up time. In addition, the LEF has an automatic low-power mode that is switched on when not used after an extended period..
To ensure optimum print quality when printing around curves, mist filters have been added to the LEF-12i to collect the residual ink-mist when printing off the edge or curve of an item. This reduces overspray and stops ink from settling on internal parts. Filters are designed to be easily replaceable by the end user.

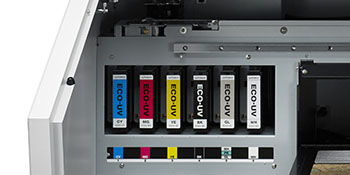

Orange and Green process color options allow you to hit specific Orange to Red areas and Blue to Green areas with approximately 260 new spot color references now available in the new Roland DG Color Library. Specific Pantone® or DIC colors that were previously difficult to match can now be easily achieved.
Reach new areas of color, including purples, reds, greens, and other challenging hues— elevating all your print output with True Rich Color 2. Improve reproduction of specific brand colors and combine
neutral grays, smooth gradations, and natural skin tones to produce color quality of incomparable realism and complexity.
|Printing method||Piezo ink-jet method|
|Attachable objects to be printed on||Width||Max. 21.2 in. (538 mm)|
|Length||Max. 14.2 in. (360 mm)|
|Thickness||Max. 3.94 in. (100 mm)|
|Weight||Max. 11 lb. (5kg)|
|Maximum printing width / printing length||Max. 20 (width) × 13 (length) in. (508 (width) × 330 (length) mm)|
|Ink||Type||ECO-UV (EUV, EUV4) 220 ml cartridge|
Five colors (cyan, magenta, yellow, black, and white)
Five colors (cyan, magenta, yellow, black, and white) and primer
Six colors (cyan, magenta, yellow, black, white, and gloss)
|Ink-curing unit||Built-in UV-LED lamp|
|Print resolution (dots per inch)||Max. 1440 dpi|
|Distance accuracy*||Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater.|
|Connectivity||Ethernet (10BASE-T/100BASE-TX, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 240 V ± 10%, 1.8 A, 50/60 Hz|
|Power consumption||During operation||Approx. 149 W|
|Sleep mode||Approx. 13 W|
|Acoustic noise level||During operation||60 dB (A) or less|
|During standby||49 dB (A) or less|
|Outer dimensions||47.3 [W] × 37.9 [D] × 21.6 [H] in. (1,202 (W) × 962 (D) × 549 (H) mm)|
|Weight||242.5 lb. (110 kg)|
Temperature: 68 to 89.6°F (20 to 32°C) (71.6°F (22°C) or
Humidity: 35 to 80% RH (no condensation)
|Not operating||Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation)|
|Included items||Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc.|
