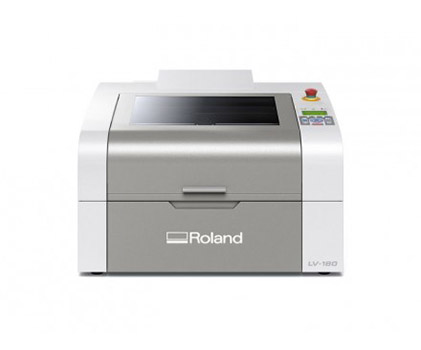

The LV-180 is an easy to use, powerful laser, loaded with features that can expand your business. This desktop unit is big enough to handle many of your engraving and cutting needs with a 20"x15" table size. Includes 2 year warranty.
LV Series Lasers
Comes standard with a Windows driver that can output directly from many windows applications such as Illustrator, Photoshop, AutoCAD and CorelDRAW.
| Model | LV-180 | LV-290 | ||
| Dimensions | 30.7 x 29.1 x 16.1 in. (780 x 740 x 410 mm) | 44.2 in x 28.3 in x 39.5 in (1125 mm x 720 mm x 1005 mm) | ||
| Work Area | 18 in × 12 in (458 mm × 305 mm) | With CCD: 21.6 in × 17.3 in (550 mm × 440 mm) | Without CCD: 25.1 in × 18.1 in (640 mm × 460 mm) | |
| Table Size | 20.4 in × 14.7 in (520 mm × 375 mm) | 31.1 in × 20.8 in (790 × 530 mm) | ||
| Max. Part Size (W x L x H) | 19.8 in × 12.1 in × 6.6 in (505 mm × 309 mm × 170 mm) | 30 in × 19 in × 6.4 in (762 mm × 482.6 mm × 165 mm) | ||
| Laser Source | 30W 10.6 µ sealed CO2 Laser | 40W 10.6 µ sealed CO2 Laser | ||
| Cooling | Air-cooled, Operating environment temperature 15°-30°C (60°-86°F) | |||
| Drive | Closed-loop DC Servo Control | |||
| Max. Motor Speed | 40 in/s (1,016 mm/s) | With CCD: 40 in/s (1,016 mm/s) | Without CCD: 60 in/s (1,524 mm/s) | |
| Speed Control | Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job) | |||
| Power Control | Adjustable from 0~100% (Up to 16 color-linked power settings per job) | |||
| Engraving Capability | 256-level gray scale image processing capability | |||
| Distance Accuracy | 0.254 mm or 0.1% of move. whichever is greater | |||
| Z-Axis Movement | Automatic | |||
| Interface | Ethernet (10 BASE-T), USB 2.0 | |||
| Compativle Operating Systems | MS Windows | |||
| Resolution | 125, 250, 300, 380, 500, 600, 760, 1000, 1500 dpi | |||
| Focus Lens | Standard: 2.0 in | Option: 1.5 in | Standard: 2.0 in | Option: 1.5/2.5/4.0 in |
| Display Panel | 4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus. | |||
| Safety | Class I Laser Product Compliant with EN60825 | |||
| Class II Laser Product Compliant with CDRH | ||||
| 2006/42/EC Machinery Directive Compliance | ||||
| Substrate Base | Honeycomb Table | Aluminum Grid Cutting Table | ||
| Camera System | N/A | SmartVISION Pro CCD (Requires USB Port) | ||
| Facility Requirements | ||||
| Operation Voltage | 100-240VAC, 50-60Hz Auto Switching, Max. 15A | |||
| Fume Extraction | External exhaust system with minimum flow rate 215m3/h (CFM 125 ft3/h) is required, 10kPA negative pressure | |||
| Air Compressor | External Air Compressor needed with a minimum Air flow of 3.18 CFM, Pressure of 49.78 psi, Oil-less, Air Capacity 86-95 L/min | |||
