Premium Cast Wall Wrap Film

DPF 6700 is a highly conformable film for interior and exterior wall wraps. Apply with heat to provide your graphic with a paint like finish. DPF 6700 is formulated to conform to textured unpainted* masonry surfaces such as brick, stucco and concrete. Combine DPF 6700 with Arlon Series 3220 overlaminates to get the perfect matte, gloss, luster or satin finish for your wall graphic applications.

Arlon DPF 6700 Product Description

Digital printing on a wide variety of direct print systems.
Highly textured surfaces such as, brick, stucco, concrete, etc.

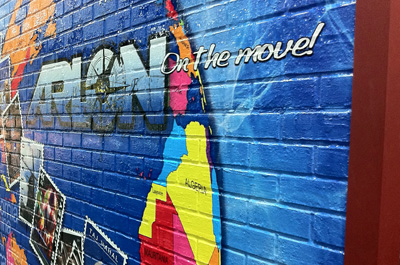

Wall murals.

Property	Test Methods	Typical Value
Surface Finish	Gloss Meter 60° Reflection	70 to 90 Gloss Units
Thickness	Micrometer, Federal Bench Type	2-mil (50 micron)
Tensile Strength	Tensile Tester with 2-in (51 mm) jaw separation; crosshead speed of 12 in/ min. (5.1 mm/s), web direction	≥ 4.5 lb/in width	≥ 1.25 kg/cm width
Elongation	Instron Tensile Tester as above	≥ 150%
Shelf Life	Free from excessive moisture, temperature, direct sunlight	2 Year from factory shipment
Application Temperature Range	On clean, dry substrate	50°F to 100°F	4°C to 38°C
Service Temperature Range	On clean, dry substrate	-40°F to 175°F	-20°C to 70°C
Dimensional Stability	Shrinkage after 158°F (70°C), 48 hours aging	0.010 in	0.25 mm
Peel Adhesion	PSTC-1, 15 min, RT 70°F (21°C)	≥ 4.0 lbs/in	≥ 0.71 kg/cm
Liner Release	TLMI Release at 90°, 300 in/min (760 cm/min)	40 g/2 in	8 g/cm
