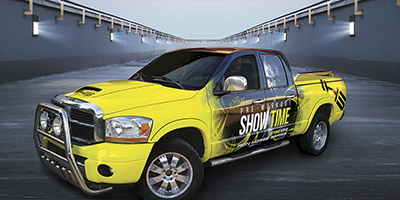

DPF6100XLP is a shop favorite for its excellent opacity and easy installation thanks to its bubble releasing, clean removing pressure-sensitive adhesive. This cast film has superior conformability around rivets, curves, contours and channels. Your most discerning vehicle and fleet wrap customer will appreciate the smooth, paint-like finish and vivid graphic printability.
Vehicle Graphics (Partial)
Vehicle Decals
Fleet Graphics
Window Graphics
Multi-Purpose Commercial
Wall Graphics (Interior)
| Property | Test Methods | Typical Value | |
|---|---|---|---|
| Surface Finish | Gloss Meter 60° Reflection | 70 to 90 Gloss Units | |
| Thickness | Micrometer, Federal Bench Type | 2-mil (50 micron) | |
| Tensile Strength | Tensile Tester with 2-in (51 mm) jaw separation; crosshead speed of 12 in/min. (5.1 mm/s), web direction | ≥ 4.5 lb/in | ≥ 1.25 kg/cm |
| Elongation | Instron Tensile Tester as above | ≥ 150% | |
| Shelf Life (In Box) | Ideal Storage Temperature 70°F (21°C) and 50% relative humidity. | 2 years from factory shipment | |
| Application Temperature Range | On clean, dry substrate (flat) | 40°F to 100°F optimum | 4.4°C to 38°C |
| Application Temperature Range | On clean, dry substrate (corrugated with rivets and channels) | 60°F to 100°F optimum | 15°C to 38°C optimum |
| Service Temperature Range | On clean, dry substrate | -40°F to 175°F | -40°C to 79°C |
| Dimensional Stability | 158°F (70°C), 48 hours | 0.015 in | 0.38 mm |
| Peel Adhesion | PSTC-1, 15 min, 70°F (21°C) | ≥ 2.5 lb/in | ≥ 0.45 kg/cm |
| Liner Release | TLMI Release at 90˚, 300 in/min (760 cm/min) | 30 g/2 in | 12 g/cm |
